Swissmann
Model 13
deep reach groove gage





ID GROOVE DIAMETER GAGE                                                               Made in USA






REACHES 13.8 INCHES INTO THE BORE.



The MODEL 13 will check the diameter of most types of internal grooves, such as o-ring
grooves and most types of seal grooves, as well as snap-ring grooves, thread and grind
reliefs, and most other ID grooves and recesses.

SLIM PROFILE
   Reaches  13.8 inches into a bore as small as 2.0 diameter.  Reaches
7.0 inches into a bore as small as 1.5 diameter.



STARRETT JEWELED INDICATOR     Made in USA.   .0005 graduations.  Can also
be used with digital indicators and transducers.


WIDE ID RANGE   Checks ID groove diameters to over 11 inches. Easy to extend to
virtually any inside diameter size.


FULL .800 RETRACTION   Clears bottlenecks and checks grooves cut deep into the ID
wall.  Groove diameter can exceed bore size by .800.

SIMPLE   Set with ordinary outside micrometers or items of known size. Setups are fast
and uncomplicated. No special set-rings. No special devices.


DURABLE
Designed for long life in the shop or field . Accuracy that lasts.

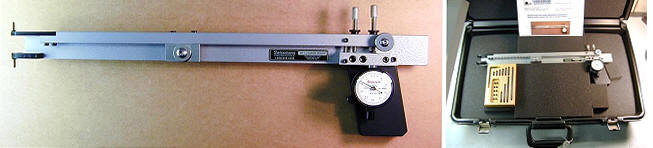

MODEL 13  COMPLETE SET

Comes as shown above, with a full set of accessories needed to check most ID grooves,
and Illustrated Instructions, in a foam-lined polymer storage case.
