MODEL
Q-60



DEEP ID GROOVE DIAMETER GAGE



THE GAGE WITH SUPERIOR
REACH, RANGE, and RETRACTION

COST CUTTER – RUGGED, LONG LIFE

The Q-60 IS DESIGNED TO CHECK MOST TYPES OF INTERNAL GROOVE DIAMETERS:  O-RING GROOVE DIAMETERS, AND MOST OTHER SEAL GROOVES.  ALSO CHECKS SNAP RING GROOVE DIAMETERS, GRIND RELIEFS,  THREAD RELIEFS, AND MOST OTHER TYPES OF ID GROOVES.
CAPACITY LEADER – Just compare. Far more capacity for your dollar. Reaches deep into small bores. Extremely wide ID groove diameter range.  Standard to over 10" ID.  Goes where other gages cannot go. Indicator graduations are .0005".
PRACTICAL – Contacts the work using readily available, inexpensive 4-48 threaded extensions and contact tips.  Two-point contact.  Set with ordinary micrometers or items of known size.

SETUPS ARE SIMPLE and FAST.

 EASY TO EXTEND TO ALMOST ANY SIZE ID with ordinary 4-48 threaded accessories or simple shop tooling.




 CAPACITIES



CHECKS INTERNAL GROOVE DIAMETERS  from .75 to over 10"
REACHES  6.3" into a 1.25" diameter Bore.
REACHES   2.7" into a .70" diameter Bore.
RETRACTION  is .700".
CHECKS GROOVES  down to .050" wide.
OVERALL LENGTH  is  9.3".

 MADE IN USA.

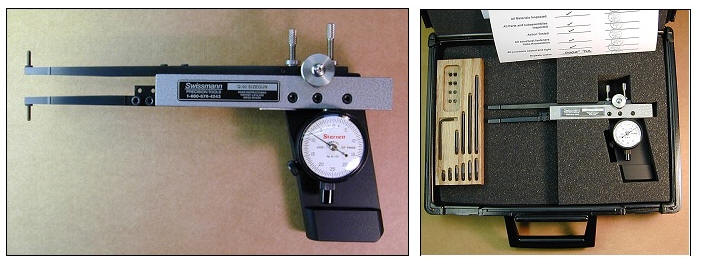

MODEL Q-60 ID GROOVE DIAMETER GAGE
 Comes with:
 ● 10 Threaded Extensions
    (.250, .375, .500, .625, .750, .875, 1.00, 2.00, 3.00, 4.00")
 ● 4 Pairs of Threaded Contact Tips, hardened and Polished.
 ● .0005" grad. Premium dial indicator
 ●  In hi-impact, foam-lined case
 ●  Written instructions, and Test Report  of accuracy.




 MODEL Q-60
 $887








To Order:   Phone (760) 378-4036    Fax (760) 378-2577   Email Gulfgage@aol.com
